Adipocyte mitochondrial genes and the forkhead factor FOXC2 are decreased in type 2 diabetes patients and normalized in response to rosiglitazone
© Håkansson et al; licensee BioMed Central Ltd. 2011
Received: 26 September 2011
Accepted: 18 November 2011
Published: 18 November 2011
FOXC2 has lately been implicated in diabetes and obesity as well as mitochondrial function and biogenesis and also as a regulator of mtTFA/Tfam. In this study, the expression of FOXC2 and selected genes involved in mitochondrial function and biogenesis in healthy subjects and in a matched cohort with type 2 diabetes patients before and after treatment with rosiglitazone was determined. Quantitative real time PCR was used to analyze both RNA and DNA from biopsies from subcutaneous adipose tissue.
Blood samples and subcutaneous abdominal fat biopsies were collected from 12 T2D patients, of which 11 concluded the study, pre-treatment and 90 days after initiation of rosiglitazone treatment, and from 19 healthy control subjects on the first and only visit from healthy subjects. Clinical parameters were measured on the blood samples. RNA and DNA were prepared from the fat biopsies and gene expression was measured with real time PCR.

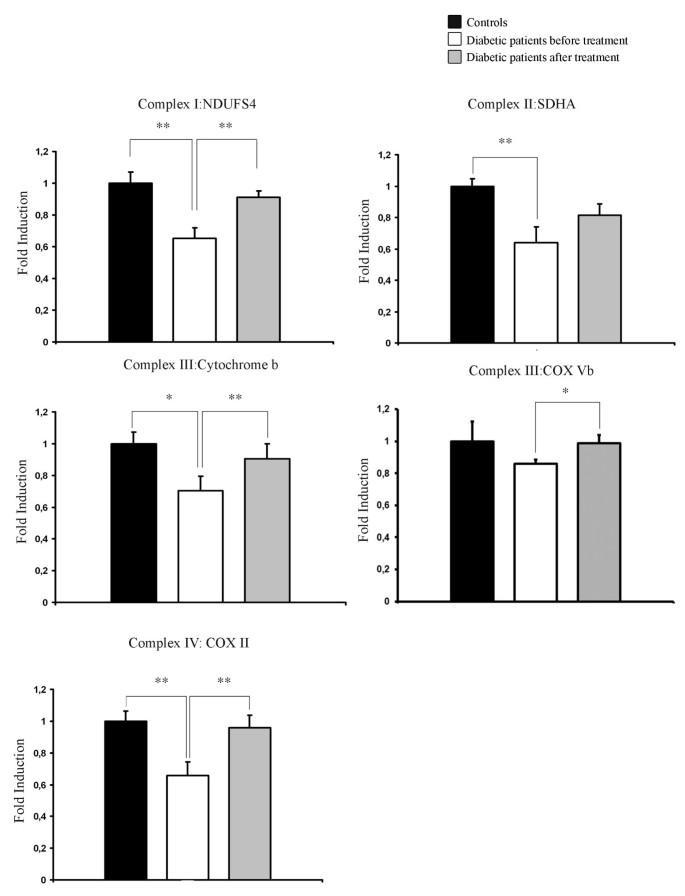

The expression level of genes in the mitochondrial respiratory complexes I - IV were significantly downregulated in the diabetic patients and restored in response to rosiglitazone treatment. Rosiglitazone treatment also increased the relative number of mitochondria in diabetic patients compared with controls. Furthermore, the transcription factors FOXC2 and mtTFA/Tfam displayed a response pattern identical to the mitochondrial genes.
FOXC2, mtTFA/Tfam and subunits of the respiratory complexes I - IV show equivalent regulation in gene expression levels in response to TZD treatment. This, together with the knowledge that FOXC2 has a regulatory function of mtTFA/Tfam and mitochondrial biogenesis, suggests that FOXC2 has a possible functional role in the TZD activated mitochondrial response.
Insulin resistance is strongly associated with obesity and a principal underlying defect in type 2 diabetes (T2D). Insulin resistance also underpins the abnormalities associated with the metabolic syndrome. Thiazolidinediones (TZDs) are peroxisomal proliferator-activated receptor (PPAR) - gamma agonists acting as powerful insulin sensitizers with glucose lowering effects similar to sulphonylureas and metformin. Apart from this, TZDs have also been linked to a plethora of other effects such as improved pro-coagulant state, blood pressure lowering effects and anti-inflammatory activity [1, 2]. While some TZDs have been associated with impaired mitochondrial function  others have shown induction of uncoupling protein-1 in white adipose tissue depots, which would be compatible with enhanced mitochondrial activity .
The aim of this study was to analyze TZD mediated effects on markers of mitochondrial function in adipose tissue. We examined biopsies from healthy controls and a matched cohort of patients with type 2 diabetes prior to and during treatment with rosiglitazone. Clinical variables such as blood pressure, fat mass and body mass index (BMI) were compared as well as blood lipid and insulin/glucose levels. From adipose tissue biopsies we prepared DNA and total RNA, which enabled us to compare the relative density of mitochondria as well as expression levels of genes of the mitochondrial respiratory chain complexes I - IV, including NDUFS4, SDHA, cytochrome b and COX II, and their responses to rosiglitazone treatment. We also analyzed the expression of the nuclear-encoded mitochondrial transcription factor A (mtTFA also referred to as Tfam), crucial in mitochondrial transcription and biogenesis [5–8], and FOXC2, which lately has been implicated both as a promoter of brown fat development and insulin sensitivity [9–11], an important factor in mitochondrial function and biogenesis  as well as a regulator of mtTFA/Tfam expression .
Clinical characteristics of the subjects and treatment effects
Mitochondrial number and steady state levels of mRNA encoding mitochondrial respiratory chain proteins
Thiazolidinediones improve insulin resistance by enhancing insulin action in skeletal muscle, liver and adipose tissue through a mechanism that is not yet fully understood. Whereas biochemically TZDs are ligands for PPARγ and previous studies suggest that there is a correlation between anti-diabetic effect and PPARγ activation, some studies imply that also receptor independent TZD effects might contribute, as reviewed by Feinstein et al. . In this study, we addressed the question of TZD related effects on mitochondrial function in human adipose tissue biopsies. Three groups were compared: healthy control subjects and a group of matched patients with non-symptomatic T2D on stable treatment with diet and/or hypoglycemic agents (not TZD) prior to and after treatment with rosiglitazone for 90 days.
While an increase in BMI was noted during treatment no increase in fat mass was observed (Figure 1). This is most likely a consequence of peripheral fluid retention, a well-known side effect of TZD treatment . Systolic but not diastolic blood pressure was lowered in the treated group, a finding that agrees well with other studies that implicate a more pronounced lowering-effect on systolic pressure as compared with diastolic . Also, the well-documented anti-inflammatory effect of TZD treatment, which may be in part mediated by increased adiponectin levels and visualized as a reduction in levels of C-reactive protein (Figure 1), can promote anti-atherosclerotic effects . It cannot be ruled out that other factors, like physical activity, could contribute to the changes in the rosiglitazone-treated group, but the patients did not report changes in their lifestyles when asked.
Using a PCR based method we measured levels of mtDNA as well as nuclear DNA as described under "material and methods". This enabled us to calculate the ratio of mtDNA normalized against nuclear DNA reflecting the relative number of mitochondria. There was a significant increase in the relative amount of mtDNA when controls and treated patients were compared (Figure 4). This agrees well with earlier studies demonstrating that in response to pioglitazone patients with T2D increase levels of mtDNA in subcutaneous adipose tissue [16, 17]. In the present study we extend what is known about TZD induced effects on mitochondrial function by not only measuring relative mtDNA levels but also steady state levels of mitochondria encoded subunits of respiratory complexes. In Figure 4 we demonstrate that subunits derived from complex I, II, III and IV are all significantly down regulated in patients with T2D. After rosiglitazone treatment, expression levels of these subunits were normalized or near normalized. This extends previous findings in which genes involved in oxidative metabolism have been shown to be positively regulated by TZDs . Here we demonstrate that the mitochondrial genome in human adipose tissue, directly or indirectly, responds to rosiglitazone treatment as judged by regulation of respiratory chain subunits.
Another interesting finding is the co-variation of adiponectin levels with the profile of respiratory chain complexes. This has actually been suggested based on experiments in mice and using cell lines . Thus, a possible regulatory role involving the mitochondria in regulation of adiponectin levels cannot be excluded, and by the experiments presented here this notion can be extended to include human adipose tissue. PGC1α has been shown to be positively regulated by TZDs and suppressed during insulin resistance [16, 19]. In this study, we see a trend towards increased levels in response to rosiglitazone treatment but no difference between control and untreated T2D subjects. While in our material we see a significant down regulation of NRF1 in T2D patients, as has previously been reported , there is no significant regulation of PGC1α (Figure 4). This is in contrast to studies showing that PGC1α is positively regulated by TZDs and suppressed during insulin resistance [16, 21]. The lack of TZD mediated regulation of NRF1 in adipose tissue gains support from a study by Bogacka et al. .
We also demonstrate that the transcription factor FOXC2 is subjected to significant regulation. This is interesting since FOXC2 has been implicated as a regulator of the amount of brown fat in rodents and also to increase the number of mitochondria and the mitochondrial function in response to its up-regulation [9, 10, 12]. Previously, we have shown reduced levels of FOXC2 in adipose tissue of insulin resistant subjects  and here we extend this observation to also include TZD-mediated regulation. Thus, FOXC2, previously linked to increased mitochondrial numbers in mice , is downregulated in patients with T2D and upregulated in response to TZD treatment. The profile of FOXC2 regulation, as depicted in Figure 4, matches that of adiponectin and those of the respiratory chain complex subunits.
Furthermore, we recently showed that FOXC2 has a regulatory function of mtTFA/Tfam , crucial for mitochondrial transcription and biogenesis [5–8]. In the present study we show the same transcriptional regulation of FOXC2 and mtTFA/Tfam in diabetic patients compared to healthy controls and in response to rosiglitazone treatment. Together, this not only establishes FOXC2 as a TZD responsive gene but it also suggests that FOXC2, in support of other evidence , plays a role in mitochondrial gene regulation in human adipose tissue.
In conclusion, the equivalent regulation in gene expression of FOXC2, mtTFA/Tfam and subunits of the respiratory complexes I - IV, in response to TZD treatment, together with the knowledge that FOXC2 has a regulatory function of mtTFA/Tfam and mitochondrial biogenesis, suggests a possible functional role for FOXC2 in the TZD activated mitochondrial response.
Materials and methods
The regional ethical review board approved this explorative open trial, which was carried out in accordance with the principles of the Declaration of Helsinki. Informed consent was obtained from all patients.
Subjects and treatment
We recruited 12 T2D patients (including 11 men and one woman) and 19 healthy control subjects (including 16 men and three post-menopausal women) via a newspaper advertisement. Patients on treatment with diet or oral hypoglycemic agents participated, and rosiglitazone 8 mg QD was added to the treatment regimen in accordance with the approved label. Before the study, three patients were on diet treatment, three on sulfonylurea, two on repaglinide, two on metformin and one on sulfonylurea and metformin combined.
Clinically significant diseases or symptoms, such as ischemic heart disease and thyroid disease as well as HbA1c > 10% were exclusion criteria. Seven patients were treated with antihypertensive agents and four with statins against hyperlipidemia. All patients were non-smokers but one subject used moist snuff. The patients were encouraged not to change their lifestyle habits during the study. One lean untreated patient (BMI 20) had previously been diagnosed as type 2 diabetic on clinical grounds but was excluded due to low serum insulin and C-peptide levels as well as rapidly deteriorating glycemic control. Thus, the results are based on the 11 patients who concluded the 90 days treatment period.
The healthy control subjects, who were individually matched to the patients with diabetes according to age and BMI, were all non-smokers but one subject used moist snuff. One subject was treated with an antihypertensive agent and one with a statin for hyperlipidemia.
Blood samples and abdominal fat biopsies were collected pre-treatment and 90 days after initiation of rosiglitazone treatment from the diabetic patients, and on the first and only visit from healthy subjects. All blood sampling and examinations were done in the morning after an overnight fast and before the participants had taken any of their daily medication. The biopsies (approximately 300 mg) were taken from the subcutaneous adipose tissue in the paraumbilical region after local infiltrative anesthesia with lidocaine (10 mL, 0.5%). Plasma glucose, serum insulin and blood lipids were analyzed using standard laboratory methods. HbA1c was determined using high-performance liquid chromatography (Mono-S method). In this study, all HbA1c values were converted to NGSP standard levels using the formula: HbA1c (NGSP) = (0.923 × HbA1c (Mono-S) + 1.345 (R2 = 0.998). High-sensitive C-reactive protein (HS-CRP) was analyzed with an immunoturbidimetric method. Total adiponectin was measured using the Human Adiponectin ELISA Kit (B-Bridge International, BioCat, GmbH, Germany). The proportion of body fat was determined using bioelectrical impedance (single frequency, 50 kHz; Animeter, HTS, Odense, Denmark). Blood pressure was measured in the supine position as a mean (mmHg) of two readings (Korotkoff 1 - 5), using a cuff of appropriate size.
RNA and DNA isolation and cDNA synthesis
Total RNA was isolated from approximately 200 mg fat tissue with the RNeasy Lipid Tissue Mini kit (Qiagen) and treated with RNase free DNase (Qiagen) according to the manufacturer's protocol. The RNA concentration was measured on a Nanodrop ND-1000 (Saveen Werner). DNA was isolated from approximately 100 mg fat tissue using the Wizard Genomic DNA purification kit (Promega) according to the manufacturer's protocol. The 1st Strand cDNA Synthesis kit for RT-PCR (AMV) (Roche) was used for reverse transcription of 500 ng total RNA using a mix of random primer p(dN)6 and oligo dT15.
Quantitative real time PCR
All real-time PCR assays contained 13 μl SYBR green PCR Master Mix (2×) (Applied Biosystems), 9 μl H2O, 1.5 μl of each forward and reverse primer (20 μM) and 1 μl cDNA or genomic DNA, except for FOXC2 for which the following composition was used: 13 μl TaqMan 2× Universal Master Mix (Applied Biosystems), 9.95 μl H2O, 0.65 μl forward primer (13 μM), 0.9 μl reverse primer (13 μM), 0.5 μl probe (5 μM) and 1 μl cDNA. The real-time PCR was performed with an ABI PRISM 7900HT (Applied Biosystems) with the following incubations: 50°C for 2 minutes, 95°C for 10 minutes and then 40 cycles of 95°C for 15 seconds and 60°C for 1 minute. Expected PCR products were confirmed on agarose gel electrophoresis (2%) and melting curve analysis. Real-time PCR was run on genomic and mitochondrial DNA to quantify the number of genomic copies, and on cDNA made from mRNA to quantify the number of transcripts. The real-time PCR primers were designed using Primer3 http://frodo.wi.mit.edu/primer3/.
The following primers were used on genomic DNA: Cytochrome b fwd 5'-tatccgccatcccatacatt-3' rev: 5'-ggtgattcctagggggttgt-3', Cyclophilin A fwd 5'-ttcatctgcactgccaagac-3' rev 5'-tcgagttgtccacagtcagc3', NRF1 fwd 5'-gtccagatccctgtgagcat-3'rev 5'-caatgtcaccacctccacag-3. Primers used on cDNA were: Cytochrome b fwd 5'-caacatctccgcatgatgaaa-3' rev 5'-ccataatttacgtctcgagtgatgtg-3', Cyclophilin A fwd 5'-catctgcactgccaagactga-3'rev 5'-ttcatgccttctttcactttgc-3', NRF1 fwd 5'-cctccaaacctaaccctgtcttta-3'rev 5'-cttccaggatcatgctcttgtactt-3', β-actin fwd 5'-gagctacgagctgcctgacg-3'rev 5'-gtagtttcgtggatgccacag-3, PGC1α fwd 5'-gccaaaccaacaactttatctcttc-3' rev 5'-cacacttaaggtgcgttcaatagtc-3', NDUFS4 fwd 5'-tccaagaaaagtttgcacca-3' rev 5'-cgcaataacatgcagtctgg-3', COX II fwd 5'-tgaagcccccattcgtataa-3' rev 5'-atgggcatgaaactgtggtt-3', COX Vb fwd 5'- actgggttggagagggagat-3' rev 5'-agacgacgctggtattgtcc-3', SDHA fwd 5'-tgggaacaagagggcatctg-3' rev 5'- ccaccactgcatcaaattcatg-3', FOXC2 fwd 5'-gcccagcagcaaactttcc-3'rev 5'-cccgagggtcgagttctca-3' probe 5'-tgttcaactcccaccggctggg-3', mtTFA/Tfam fwd 5'- gggttccagttgtgattgct-3' rev 5'- gccaagacagatgaaaacca-3'.
Calculations and statistics
In a PCR assay, the relative number of mitochondria was determined by measuring mtDNA as the level of the mitochondrial gene cytochrome b and normalizing it, by geometric averaging, against nuclear DNA measured as the level of cyclophilin A and NRF-1. Similar methodology has been used by others . To quantify the number of transcripts, the mRNA levels were normalized against cyclophilin A and β-actin by geometric averaging. All PCR reactions were run in triplicates and the mean Ct-values were used. For statistical calculations Mann-Whitney U-test, Wilcoxon's matched pairs signed rank sum test and Student's t-test were used as appropriate. The correlation was analyzed on all subjects, according to Spearman.
This work was conducted within the "Center for Genetics" of Sahlgrenska Academy at University of Göteborg supported by grants to SE from the Swedish Research Council (grant K2005-32BI-15324-01A). We also acknowledge EU grants (QLK3-CT-2002-02149), (DIABESITY; LSHM-CT-2003-503041), The Arne and IngaBritt Lundberg Foundation, The Söderberg Foundation, The Knut and Alice Wallenberg's foundation and The Swedish Foundation for Strategic Research through the Center for Cardiovascular and Metabolic Research.
- Boden G, Zhang M: Recent findings concerning thiazolidinediones in the treatment of diabetes. Expert Opin Investig Drugs. 2006, 15: 243-250. 10.1517/135437184.108.40.206.View ArticlePubMedGoogle Scholar
- Campbell IW: The Clinical Significance of PPAR Gamma Agonism. Curr Mol Med. 2005, 5: 349-363. 10.2174/1566524053766068.View ArticlePubMedGoogle Scholar
- Feinstein DL, Spagnolo A, Akar C, Weinberg G, Murphy P, et al: Receptor-independent actions of PPAR thiazolidinedione agonists: is mitochondrial function the key?. Biochem Pharmacol. 2005, 70: 177-188. 10.1016/j.bcp.2005.03.033.View ArticlePubMedGoogle Scholar
- Fukui Y, Masui S, Osada S, Umesono K, Motojima K: A new thiazolidinedione, NC-2100, which is a weak PPAR-gamma activator, exhibits potent antidiabetic effects and induces uncoupling protein 1 in white adipose tissue of KKAy obese mice. Diabetes. 2000, 49: 759-767. 10.2337/diabetes.49.5.759.View ArticlePubMedGoogle Scholar
- Choi YS, Kim S, Pak YK: Mitochondrial transcription factor A (mtTFA) and diabetes. Diabetes Res Clin Pract. 2001, 54 (Suppl 2): S3-9.View ArticlePubMedGoogle Scholar
- Ekstrand MI, Falkenberg M, Rantanen A, Park CB, Gaspari M, et al: Mitochondrial transcription factor A regulates mtDNA copy number in mammals. Hum Mol Genet. 2004, 13: 935-944. 10.1093/hmg/ddh109.View ArticlePubMedGoogle Scholar
- Larsson NG, Wang J, Wilhelmsson H, Oldfors A, Rustin P, et al: Mitochondrial transcription factor A is necessary for mtDNA maintenance and embryogenesis in mice. Nat Genet. 1998, 18: 231-236. 10.1038/ng0398-231.View ArticlePubMedGoogle Scholar
- Virbasius JV, Scarpulla RC: Activation of the human mitochondrial transcription factor A gene by nuclear respiratory factors: a potential regulatory link between nuclear and mitochondrial gene expression in organelle biogenesis. Proc Natl Acad Sci USA. 1994, 91: 1309-1313. 10.1073/pnas.91.4.1309.PubMed CentralView ArticlePubMedGoogle Scholar
- Cederberg A, Gronning LM, Ahren B, Tasken K, Carlsson P, et al: FOXC2 is a winged helix gene that counteracts obesity, hypertriglyceridemia, and diet-induced insulin resistance. Cell. 2001, 106: 563-573. 10.1016/S0092-8674(01)00474-3.View ArticlePubMedGoogle Scholar
- Kim JK, Kim HJ, Park SY, Cederberg A, Westergren R, et al: Adipocyte-specific overexpression of FOXC2 prevents diet-induced increases in intramuscular fatty acyl CoA and insulin resistance. Diabetes. 2005, 54: 1657-1663. 10.2337/diabetes.54.6.1657.View ArticlePubMedGoogle Scholar
- Yang X, Enerback S, Smith U: Reduced expression of FOXC2 and brown adipogenic genes in human subjects with insulin resistance. Obes Res. 2003, 11: 1182-1191. 10.1038/oby.2003.163.View ArticlePubMedGoogle Scholar
- Lidell ME, Seifert EL, Westergren R, Heglind M, Gowing A, et al: The adipocyte-expressed forkhead transcription factor Foxc2 regulates metabolism through altered mitochondrial function. Diabetes. 2011, 60: 427-435. 10.2337/db10-0409.PubMed CentralView ArticlePubMedGoogle Scholar
- Chahwala V, Arora R: Cardiovascular manifestations of insulin resistance. Am J Ther. 2009, 16: e14-28. 10.1097/MJT.0b013e3180a724b3.View ArticlePubMedGoogle Scholar
- Giles TD, Sander GE: Effects of thiazolidinediones on blood pressure. Curr Hypertens Rep. 2007, 9: 332-337. 10.1007/s11906-007-0060-0.View ArticlePubMedGoogle Scholar
- Boyle PJ: Diabetes mellitus and macrovascular disease: mechanisms and mediators. Am J Med. 2007, 120: S12-17.View ArticlePubMedGoogle Scholar
- Bogacka I, Xie H, Bray GA, Smith SR: Pioglitazone induces mitochondrial biogenesis in human subcutaneous adipose tissue in vivo. Diabetes. 2005, 54: 1392-1399. 10.2337/diabetes.54.5.1392.View ArticlePubMedGoogle Scholar
- Sears DD, Hsiao G, Hsiao A, Yu JG, Courtney CH, et al: Mechanisms of human insulin resistance and thiazolidinedione-mediated insulin sensitization. Proc Natl Acad Sci USA. 2009, 106: 18745-18750. 10.1073/pnas.0903032106.PubMed CentralView ArticlePubMedGoogle Scholar
- Koh EH, Park JY, Park HS, Jeon MJ, Ryu JW, et al: Essential role of mitochondrial function in adiponectin synthesis in adipocytes. Diabetes. 2007, 56: 2973-2981. 10.2337/db07-0510.View ArticlePubMedGoogle Scholar
- Mensink M, Hesselink MK, Russell AP, Schaart G, Sels JP, et al: Improved skeletal muscle oxidative enzyme activity and restoration of PGC-1 alpha and PPAR beta/delta gene expression upon rosiglitazone treatment in obese patients with type 2 diabetes mellitus. Int J Obes (Lond). 2007, 31: 1302-1310. 10.1038/sj.ijo.0803567.View ArticleGoogle Scholar
- Patti ME, Butte AJ, Crunkhorn S, Cusi K, Berria R, et al: Coordinated reduction of genes of oxidative metabolism in humans with insulin resistance and diabetes: Potential role of PGC1 and NRF1. Proc Natl Acad Sci USA. 2003, 100: 8466-8471. 10.1073/pnas.1032913100.PubMed CentralView ArticlePubMedGoogle Scholar
- Rong JX, Qiu Y, Hansen MK, Zhu L, Zhang V, et al: Adipose mitochondrial biogenesis is suppressed in db/db and high-fat diet-fed mice and improved by rosiglitazone. Diabetes. 2007, 56: 1751-1760. 10.2337/db06-1135.View ArticlePubMedGoogle Scholar
- Hoelzel W, Weykamp C, Jeppsson JO, Miedema K, Barr JR, et al: IFCC reference system for measurement of hemoglobin A1c in human blood and the national standardization schemes in the United States, Japan, and Sweden: a method-comparison study. Clin Chem. 2004, 50: 166-174. 10.1373/clinchem.2003.024802.View ArticlePubMedGoogle Scholar
